12. Differential expression anlaysis of the TCGA breast cancer set

First we retrieve the breast cancer RNAseq data as well as the clinical classification of the sets from cbioportal.org.

The gene expresion data is stored in the DataFrame brca, and the adherent clinical information of the cancers and their patients is stored in the DataFrame brca_clin. It can be woth exploring these data structures.

import pandas as pd
import numpy as np
from scipy.stats import ttest_ind
import sys
IN_COLAB = 'google.colab' in sys.modules
if IN_COLAB:
    ![ ! -f "dsbook/README.md" ] && git clone https://github.com/statisticalbiotechnology/dsbook.git
    my_path = "dsbook/dsbook/common/"
else:
    my_path = "../common/"
sys.path.append(my_path) # Read local modules for tcga access and qvalue calculations
import load_tcga as tcga
import qvalue

brca = tcga.get_expression_data(my_path + "../data/brca_tcga_pub2015.tar.gz", 'https://cbioportal-datahub.s3.amazonaws.com/brca_tcga_pub2015.tar.gz',"data_mrna_seq_v2_rsem.txt")
brca_clin = tcga.get_clinical_data(my_path + "../data/brca_tcga_pub2015.tar.gz", 'https://cbioportal-datahub.s3.amazonaws.com/brca_tcga_pub2015.tar.gz',"data_clinical_sample.txt")

File extracted to ../data/brca_tcga_pub2015
File extracted to ../data/brca_tcga_pub2015

Before any further analysis we clean our data. This includes removal of genes where no transcripts were found for any of the samples , i.e. their values are either NaN or zero.

The data is also log transformed. It is generally assumed that expression values follow a log-normal distribution, and hence the log transformation implies that the new values follow a nomal distribution.

brca.dropna(axis=0, how='any', inplace=True)
brca = brca.loc[~(brca<=0.0).any(axis=1)]
brca = pd.DataFrame(data=np.log2(brca),index=brca.index,columns=brca.columns)

We can get an overview of the expression data, i.e differnt characterizations of the tumors from other sources (patient file, histological analysis etc) than the expression data:

brca

	TCGA-A1-A0SB-01	TCGA-A1-A0SD-01	TCGA-A1-A0SE-01	TCGA-A1-A0SF-01	TCGA-A1-A0SH-01	TCGA-A1-A0SI-01	TCGA-A1-A0SJ-01	TCGA-A1-A0SK-01	TCGA-A1-A0SM-01	TCGA-A1-A0SN-01	...	TCGA-LL-A5YM-01	TCGA-LL-A5YN-01	TCGA-LL-A5YO-01	TCGA-LL-A5YP-01	TCGA-LQ-A4E4-01	TCGA-MS-A51U-01	TCGA-OL-A66H-01	TCGA-OL-A66I-01	TCGA-OL-A66J-01	TCGA-OL-A66K-01
Hugo_Symbol
HMGB1P1	6.862786	5.913201	7.258756	7.141528	6.318322	5.989800	7.075461	10.128243	6.900577	6.571219	...	6.662298	6.648297	8.121858	7.689562	6.870735	7.235377	6.849722	7.307063	6.961539	6.732642
LOC155060	8.128052	6.387132	6.223071	8.296679	6.580528	7.226836	5.992061	7.381276	6.336428	6.760258	...	7.032748	8.520790	7.373054	6.700139	8.263093	9.077958	8.401726	7.719361	8.335920	9.115184
HSPB1P1	5.449515	7.826203	8.227829	8.110198	6.986008	7.996865	9.313161	6.095703	7.521303	8.912048	...	11.926292	9.389839	8.576146	8.456419	7.290927	7.765053	8.651058	7.933979	10.153871	10.070840
GTPBP6	8.616132	8.083619	8.895371	9.538594	8.465846	8.730170	8.611165	8.370326	8.954813	9.254954	...	10.601717	10.453578	10.685847	10.133098	8.878949	9.282737	9.881552	8.969242	9.087300	9.781890
A1BG	5.620563	7.152768	7.591106	8.348814	7.494444	7.005119	7.825150	6.437021	8.264413	6.452506	...	10.557569	8.821466	8.207272	7.087837	8.962278	8.502185	5.679393	7.695365	8.060956	8.721849
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
ZYG11B	10.414229	9.761690	9.907780	9.783369	10.402201	9.932282	10.093600	10.431197	10.461518	9.406503	...	8.029939	8.735835	9.524218	9.022067	9.711410	9.745021	9.308973	8.904128	9.416144	9.477514
ZYX	12.594962	11.797529	11.554500	12.383563	12.415996	12.140607	11.566101	9.207597	12.158002	11.505789	...	12.404470	12.495560	12.714737	13.491160	11.410198	12.267554	12.023571	12.692872	12.348940	12.276578
ZZEF1	10.915356	10.320764	9.855441	9.867816	10.358420	9.980989	9.904470	10.812922	10.207563	10.812135	...	8.524975	9.913596	10.200806	10.172626	10.285172	11.111679	10.289877	9.342848	10.460192	10.005446
ZZZ3	10.488039	10.223519	10.070714	8.988931	9.967392	9.905970	9.489432	10.383320	10.506666	9.533681	...	7.236577	8.989705	9.244033	8.948726	10.094338	9.378562	9.594594	9.608044	9.478536	9.741248
TPTEP1	9.109346	6.426506	9.758466	5.707779	8.832177	4.935752	5.443935	5.628774	10.191686	4.734417	...	4.934016	4.107805	7.694024	6.203377	4.696745	7.965032	2.545524	5.559400	9.148153	5.221173

12928 rows × 817 columns

and the clinical data:

brca_clin

SAMPLE_ID	TCGA-A1-A0SB-01	TCGA-A1-A0SD-01	TCGA-A1-A0SE-01	TCGA-A1-A0SF-01	TCGA-A1-A0SH-01	TCGA-A1-A0SI-01	TCGA-A1-A0SJ-01	TCGA-A1-A0SK-01	TCGA-A1-A0SM-01	TCGA-A1-A0SN-01	...	TCGA-LL-A5YM-01	TCGA-LL-A5YN-01	TCGA-LL-A5YO-01	TCGA-LL-A5YP-01	TCGA-LQ-A4E4-01	TCGA-MS-A51U-01	TCGA-OL-A66H-01	TCGA-OL-A66I-01	TCGA-OL-A66J-01	TCGA-OL-A66K-01
PATIENT_ID	TCGA-A1-A0SB	TCGA-A1-A0SD	TCGA-A1-A0SE	TCGA-A1-A0SF	TCGA-A1-A0SH	TCGA-A1-A0SI	TCGA-A1-A0SJ	TCGA-A1-A0SK	TCGA-A1-A0SM	TCGA-A1-A0SN	...	TCGA-LL-A5YM	TCGA-LL-A5YN	TCGA-LL-A5YO	TCGA-LL-A5YP	TCGA-LQ-A4E4	TCGA-MS-A51U	TCGA-OL-A66H	TCGA-OL-A66I	TCGA-OL-A66J	TCGA-OL-A66K
OTHER_SAMPLE_ID	f66358d4-9319-4c23-983d-ab5056daacf1	81f193d9-ad19-43c2-b89f-54003a8d133e	2fd1998c-1ea4-42eb-84b9-db352da9cf25	f4d51ca6-89a6-4571-ae8d-0fad7dde4452	08044da0-8cb7-4bf7-bbb6-b80be4fddd8c	c5181ae5-bd05-459f-920d-26bd31bd9088	9ec60572-39e4-4a0d-b157-cf0ec726fb1d	dbd8fda0-bdf2-40f0-80b6-daef5ebf9c97	289f5433-4834-401f-9361-efc8e883e630	62d2a36e-feb1-4084-8111-7ea38a4e3049	...	CF5FDA71-8FBA-43FC-91F3-E4BAA36571DD	97AD1ECF-7643-461F-B9A2-1AC953825895	2B7230C7-0182-4417-9861-03672629D98D	3DC0BC4F-6863-4297-8915-F29E1AA25D26	8C8D4BD4-3AA9-4AD1-9715-2376EE540A0C	764A5732-0B44-4CBE-93F2-7B84FD7D81A1	31E39E5F-AF9C-4F34-B065-8363CF9DF39C	2B8C960A-3E9A-49BF-8329-7D322DA90326	1889A2AF-AE25-41EC-8A6D-0EC5C5B852CB	796B90A8-99D6-4102-81A0-96C6954E9F26
DAYS_TO_COLLECTION	764	1697	1672	1648	1305	1267	1399	1164	1115	1091	...	131	41	47	29	414	129	441	1715	1645	981
IS_FFPE	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO	...	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
OCT_EMBEDDED	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	...	FALSE	FALSE	FALSE	FALSE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
CANCER_TYPE_DETAILED	Invasive Breast Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Lobular Carcinoma	Breast Invasive Ductal Carcinoma	Breast Mixed Ductal and Lobular Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Ductal Carcinoma	Invasive Breast Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Ductal Carcinoma	...	Breast Invasive Ductal Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Ductal Carcinoma	Breast Invasive Lobular Carcinoma	Breast Invasive Lobular Carcinoma	Invasive Breast Carcinoma	Breast Invasive Ductal Carcinoma	Breast Mixed Ductal and Lobular Carcinoma	Breast Invasive Lobular Carcinoma
ONCOTREE_CODE	BRCA	IDC	ILC	IDC	MDLC	IDC	IDC	BRCA	IDC	IDC	...	IDC	IDC	IDC	IDC	ILC	ILC	BRCA	IDC	MDLC	ILC
SAMPLE_TYPE	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary	...	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary	Primary
SOMATIC_STATUS	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched	...	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched	Matched
TMB_NONSYNONYMOUS	0.6	1.0	0.7	1.266667	2.6	5.566667	1.0	3.366667	0.733333	1.533333	...	0.766667	0.866667	1.5	2.133333	2.3	0.433333	0.7	0.966667	1.733333	0.833333

62 rows × 817 columns

12.1. Differential expression analysis

The goal of the excercise is to determine which genes that are differentially expressed in so called tripple negative cancers as compared to other cancers. A breast cancer is triple negative when it does not express either Progesterone receptors, Estrogen receptors or Epidermal growth factor receptor 2. Such cancers are known to behave different than other cancers, and are not amendable to regular hormonal theraphies.

We first create a vector of booleans, that track which cancers that are tripple negative. This will be needed as an input for subsequent significance estimation.

brca_clin.index

Index(['PATIENT_ID', 'OTHER_SAMPLE_ID', 'DAYS_TO_COLLECTION', 'IS_FFPE',
       'OCT_EMBEDDED', 'PATHOLOGY_REPORT_FILE_NAME',
       'SURGICAL_PROCEDURE_FIRST', 'FIRST_SURGICAL_PROCEDURE_OTHER',
       'SURGERY_FOR_POSITIVE_MARGINS', 'SURGERY_FOR_POSITIVE_MARGINS_OTHER',
       'MARGIN_STATUS_REEXCISION', 'STAGING_SYSTEM_OTHER',
       'MICROMET_DETECTION_BY_IHC', 'METASTATIC_SITE', 'METASTATIC_SITE_OTHER',
       'ER_STATUS_BY_IHC', 'ER_STATUS_IHC_PERCENT_POSITIVE',
       'ER_POSITIVITY_SCALE_USED', 'IHC_SCORE', 'ER_POSITIVITY_SCALE_OTHER',
       'PR_STATUS_BY_IHC', 'PR_STATUS_IHC_PERCENT_POSITIVE',
       'PR_POSITIVITY_SCALE_USED', 'PR_POSITIVITY_IHC_INTENSITY_SCORE',
       'PR_POSITIVITY_SCALE_OTHER', 'PR_POSITIVITY_DEFINE_METHOD', 'IHC_HER2',
       'HER2_IHC_PERCENT_POSITIVE', 'HER2_IHC_SCORE',
       'HER2_POSITIVITY_SCALE_OTHER', 'HER2_POSITIVITY_METHOD_TEXT',
       'HER2_FISH_STATUS', 'HER2_COPY_NUMBER', 'CENT17_COPY_NUMBER',
       'HER2_AND_CENT17_CELLS_COUNT', 'HER2_CENT17_RATIO',
       'HER2_AND_CENT17_SCALE_OTHER', 'HER2_FISH_METHOD',
       'NEW_TUMOR_EVENT_AFTER_INITIAL_TREATMENT', 'NTE_ER_STATUS',
       'NTE_ER_STATUS_IHC__POSITIVE', 'NTE_ER_IHC_INTENSITY_SCORE',
       'NTE_PR_STATUS_BY_IHC', 'NTE_PR_STATUS_IHC__POSITIVE',
       'NTE_PR_IHC_INTENSITY_SCORE', 'NTE_HER2_STATUS',
       'NTE_HER2_STATUS_IHC__POSITIVE', 'NTE_HER2_POSITIVITY_IHC_SCORE',
       'NTE_HER2_FISH_STATUS', 'NTE_CENT_17_HER2_RATIO', 'PRIMARY_SITE',
       'DISEASE_CODE', 'METASTATIC_TUMOR_INDICATOR', 'PROJECT_CODE',
       'TISSUE_SOURCE_SITE', 'TUMOR_TISSUE_SITE', 'CANCER_TYPE',
       'CANCER_TYPE_DETAILED', 'ONCOTREE_CODE', 'SAMPLE_TYPE',
       'SOMATIC_STATUS', 'TMB_NONSYNONYMOUS'],
      dtype='object')

brca_clin.loc["3N"]= (brca_clin.loc["PR_STATUS_BY_IHC"]=="Negative") & (brca_clin.loc["ER_STATUS_BY_IHC"]=="Negative") & (brca_clin.loc["IHC_HER2"]=="Negative")
tripple_negative_bool = (brca_clin.loc["3N"] == True)

Next, for each transcript that has been measured, we calculate (1) log of the average Fold Change difference between tripple negative and other cancers, and (2) the significance of the difference between tripple negative and other cancers.

An easy way to do so is by defining a separate function, get_significance_two_groups(row), that can do such calculations for any row of the brca DataFrame, and subsequently we use the function apply for the function to execute on each row of the DataFrame. For the significance test we use a \(t\) test, which is provided by the function ttest_ind.

This results in a new table with gene names and their \(p\) values of differential concentration, and their fold changes.

def get_significance_two_groups(row):
    log_fold_change = row[tripple_negative_bool].mean() - row[~tripple_negative_bool].mean() # Calculate the log Fold Change
    p = ttest_ind(row[tripple_negative_bool],row[~tripple_negative_bool],equal_var=False)[1] # Calculate the significance
    return [p,-np.log10(p),log_fold_change]

pvalues = brca.apply(get_significance_two_groups,axis=1,result_type="expand")
pvalues.rename(columns = {list(pvalues)[0]: 'p', list(pvalues)[1]: '-log_p', list(pvalues)[2]: 'log_FC'}, inplace = True)

The resulting list can be further investigated.

pvalues

	p	-log_p	log_FC
Hugo_Symbol
HMGB1P1	4.916745e-08	7.308322	0.475075
LOC155060	6.431571e-02	1.191683	-0.193073
HSPB1P1	7.853037e-08	7.104962	-0.867070
GTPBP6	5.730296e-01	0.241823	0.059863
A1BG	2.801925e-05	4.552543	-0.628046
...	...	...	...
ZYG11B	1.125863e-01	0.948514	0.087070
ZYX	2.382079e-05	4.623044	0.383241
ZZEF1	7.551192e-03	2.121985	-0.178845
ZZZ3	3.317690e-02	1.479164	0.152268
TPTEP1	5.024608e-01	0.298898	0.175348

12928 rows × 3 columns

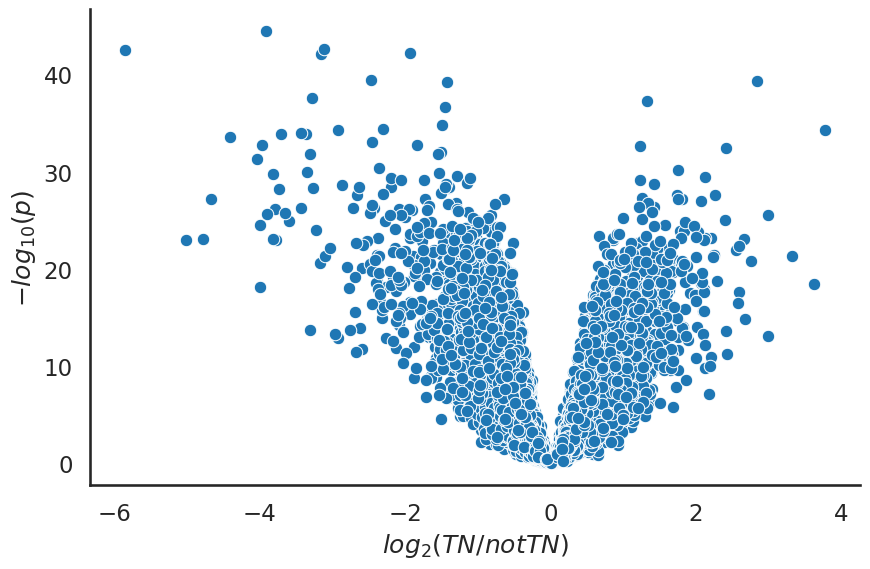

A common way to illustrate the diffrential expression values are by plotting the negative log of the \(p\) values, as a function of the mean fold change of each transcript. This is known as a Volcano plot.

import matplotlib.pyplot as plt
import seaborn as sns

sns.set_style("white")
sns.set_context("talk")
ax = sns.relplot(data=pvalues,x="log_FC",y="-log_p",aspect=1.5,height=6)
ax.set(xlabel="$log_2(TN/not TN)$", ylabel="$-log_{10}(p)$");

The regular interpretation of a Volcano plot is that the ges in the top left and the top right corner are the most interesting ones, as the have a large fold change between the conditions as well as being very significant.
